Rotavator
One-Pass Soil Perfection

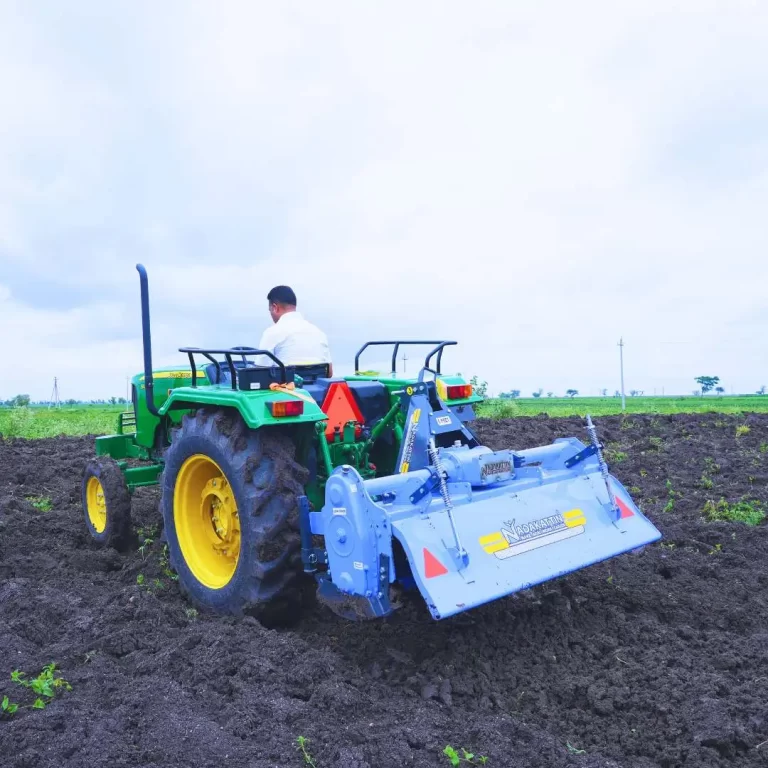

Rotavator
The Nadakattin Rotavator is a robust, one-pass soil preparation tool. Available in multiple sizes and speeds—from 2.5 ft single-speed to 6 ft multi-speed models—it’s designed for tertiary tillage, breaking clumps, blending residues, and creating uniform seedbeds quickly and efficiently. Nadakattin Agri ImplementsIndiaMART
Breaks, mixes, and levels the soil in a single operation — saving time, labor, and fuel while preparing a uniform seedbed.
Features
Powerful Performance in Hard
Anti-Clogging & Smooth Operation
Strong & Rigid Construction
Residue Management
Low Maintenance & User Friendly
Manual tillage is slow, physically draining, and requires multiple passes with different tools. Hard, compacted soils make seed germination difficult, while labor shortages delay field preparation.
How It Solves Farmer Problems
Multiple passes with different tools mean lost time, extra fuel, labor, and delays. The Rotavator streamlines this: one pass, one tool. It improves soil health, integrates crop residue back into the soil, and reduces cost and effort, accelerating preparation and sowing.
Impact
- Prepares 5+ acres/day with one operator.
- Saves fuel and time by combining tillage stages.
- Improves soil moisture retention and seed germination.
- Reduces reliance on scarce seasonal labor.
Technical Specifications
6-ft multi-speed: 42 L-type blades IndiaMART
Full range: From 2.5 ft single-speed to 6 ft heavy-duty models Nadakattin Agri Implements
|
Series
|
Mini Series
|
Orchard Series
|
Regular Serie
|
Regular Serie
|
Regular Serie
|
Regular Serie
|
Regular Serie
|
|---|---|---|---|---|---|---|---|
|
Model
|
3 Feet Single Speed Heavy Gear Box (Regular)
|
4 Feet Multi Speed Heavy Gear Box (Regular)
|
5 Feet Single Speed Heavy Gear Box (Regular)
|
5 Feet Multi Speed Heavy Gear Box (Regular)
|
5 Feet Multi Speed Full Heavy Gear Box (Heavy Duty)
|
6 Feet Multi Speed Heavy Gear Box (Regular)
|
6 Feet Multi Speed Full Heavy Gear Box (Heavy Duty)
|
|
No. of Blades
|
20
|
30
|
36
|
36
|
36
|
42
|
42
|
|
No. of Flanges
|
5
|
7
|
7
|
7
|
7
|
7
|
7
|
|
Weight (kg)
|
185
|
365
|
415
|
400
|
435
|
480
|
480
|
|
Oil for Gear Box (Ltr)
|
1 ½
|
1
|
1
|
1
|
1
|
3.5
|
3.5
|
|
Oil for Gear Box (Ltr)
|
1.5
|
2
|
2
|
2
|
2
|
2
|
2
|
|
Tractor HP Required
|
15–24
|
25–35
|
35–45
|
35–45
|
35–45
|
45–50
|
45–50
|
|
Blade Type
|
L
|
L
|
L
|
L
|
L
|
L
|
L
|
|
Blade Thickness (mm)
|
8
|
8
|
8
|
8
|
8
|
8
|
8
|
|
Distance b/w Flanges (mm)
|
175/7
|
215/8
|
235/9
|
235/9
|
235/9
|
235/9
|
235/9
|
|
Machine Capacity (RPM)
|
540
|
1000
|
540
|
540
|
540
|
540/1000
|
540/1000
|
|
Tractor PTO (RPM)
|
540
|
540/1000
|
540
|
540
|
540
|
540/1000
|
540/1000
|
